270 Awning XL With Rear door

Xplora 270 Awning XL with Rear Door

Xplora's 270 Awning XL is a rear door model that has been engineered to suit New Zealand's constantly changing weather. This design includes a large zip opening at the rear, allowing you to easily access a rooftop tent or the tops of your roof while keeping the awning open. Whether you're at the beach, camping, or setting up at a worksite, this awning provides reliable shade and protection from the elements.

With a robust gusseted aluminium A-frame design, the Xplora Awning is stronger than most other awnings on the market while maintaining a lightweight design. This awning can be free-standing in winds under 30km/hr, although tying down is recommended, as it is very easy to do with the integrated poles. Additionally, the awning features 4 integrated lights with three color options: white, amber, and a mix. All colors are fully dimmable and powered by USB for convenience.

Features:

• 1000GSM PVC Bag: Ensures your awning is protected during transport.
• 360GSM Polyester Cotton Canvas: Offers UV50++ protection for superior sun defense.
• Robust Gusseted Aluminium A-Frame Design: Provides strength and durability while keeping the awning lightweight.
• Aluminium Square Tube Framing: 1.5mm thickness for enhanced durability.
• Aluminium Backplate (22mm): Reinforced and supported on all arms for added strength.
• Large Zip Opening at the Rear: Allows easy access to a rooftop tent or the tops of your roof while the awning remains open.
• 4 x Dual-Colour LED Strips: Switch-controlled with 1 to 3 USB cables, each 3m long for convenience; featuring three color options and fully dimmable.
• 304 Stainless Steel: All bolts, nuts, and washers are made of 304 stainless steel.

Contents:

• 6 x Legs (260cm): Adjustable and robust for all conditions.
• 2 x Quick Release Rope Ratchets: Tension your awning securely.

• 2 x 304 Stainless Steel L-Brackets: (L33cm x H15cm x W7cm - black) for strong mounting.
• 4 x 304 Stainless Steel Clips: For secure attachment.

• 16 x M8 Bolts, Nuts & Washers: For durable fastening.
• 6 x Pegs: Ensuring extra stability.
• 2 x Wrenches: For quick adjustments and setup.

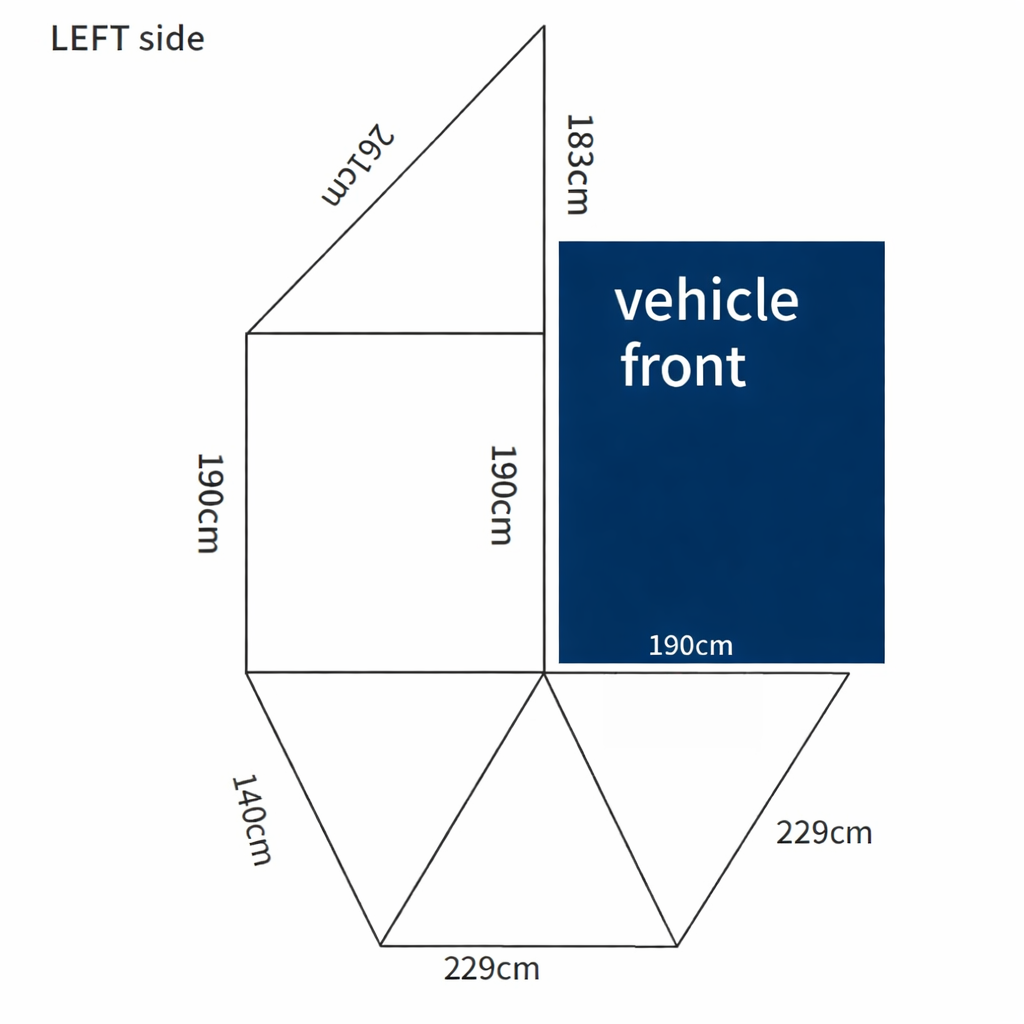

Size Guide:

• Size: 2m
• Closed Size: 214cm x 19cm x 19cm
• Weight: 29kg

Important Installation Note:

If installing onto a dual-cab ute, the awning needs to be mounted to the tray or the body, not over both.
